Building a Mobile Sync Engine with SQLite

Implement Device Data Synchronization for Mobile Applications

In our previous guide, Real Systems Built with SQLite, we explored how SQLite powers real-world applications across mobile apps, IoT systems, embedded devices, analytics tools, and edge computing platforms.

Now we will begin building one of those systems.

One of the most practical uses of SQLite is inside mobile applications. A mobile app cannot always depend on a stable internet connection. Users may lose signal while traveling, work in areas with poor connectivity, or open the app while completely offline.

Still, they expect the app to work.

They want to create notes, update tasks, save forms, check records, and continue working without interruption.

This is where a mobile sync engine becomes important.

A sync engine helps a mobile app:

• Store data locally using SQLite

• Track changes made on the device

• Upload local changes to a remote server

• Download updates made elsewhere

• Handle conflicts when the same record changes in more than one place

In this guide, we will build the foundation of a mobile sync engine and understand how SQLite acts as the local infrastructure behind offline-first mobile applications.

Why Mobile Applications Need a Sync Engine

Imagine a task management app.

A user opens the app on their phone and creates a task:

Buy groceries

Later, they open the same app on a tablet.

Naturally, they expect the task to appear there too.

Now imagine a more complicated situation.

The phone was offline when the task was created. The tablet also made changes while offline. The server has not yet received updates from either device.

Without a sync engine, the app has no reliable way to decide:

• What changed locally

• What changed on the server

• Which device has the latest version

• Whether two versions conflict

• What should be stored as the final record

A sync engine solves this problem by creating a controlled process for moving data between the local SQLite database and the remote server.

This pattern is common in:

• Notes apps

• To-do list apps

• Field service apps

• Mobile CRM systems

• Inventory apps

• Health tracking apps

• Offline data collection tools

The key idea is simple:

The app should keep working locally first, then synchronize when the network is available.

This is often called offline-first architecture.

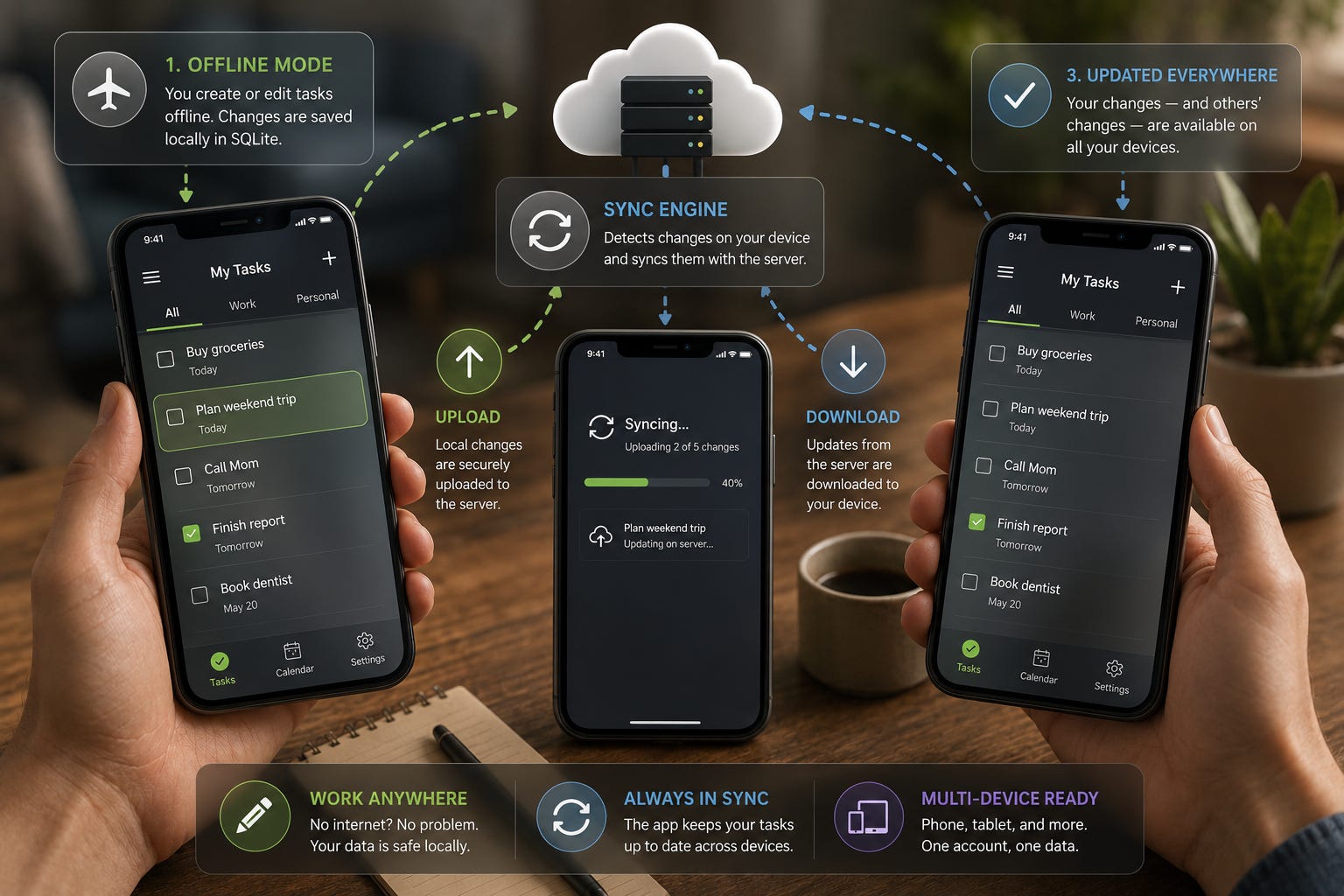

The Architecture We Will Build

Our mobile sync system has three main parts.

Mobile Device

The mobile device contains:

• The user interface

• The local SQLite database

• The sync engine logic

SQLite stores the app data directly on the device. This allows the app to continue working even when the internet connection is unavailable.

Sync Engine

The sync engine sits between the local database and the server.

It is responsible for:

• Detecting local changes

• Preparing data for upload

• Sending changes to the server

• Downloading remote changes

• Updating the local SQLite database

• Handling conflicts

Think of the sync engine as the traffic controller for your data.

Remote Server

The remote server stores the shared version of the data.

It usually manages:

• User accounts

• API endpoints

• Server-side validation

• Shared records

• Updates from multiple devices

A simple view looks like this:

Mobile App
   ↓
SQLite Database
   ↓
Sync Engine
   ↓
Remote Server

The mobile app uses SQLite for fast local access, while the sync engine keeps that local data connected to the wider system.

Designing the Local SQLite Database

Let us build a simple task table.

CREATE TABLE tasks (
    id TEXT PRIMARY KEY,
    title TEXT NOT NULL,
    completed INTEGER DEFAULT 0,
    updated_at INTEGER NOT NULL,
    sync_status TEXT NOT NULL
);

This table looks simple, but it includes important fields for synchronization.

id

In many local-only SQLite applications, developers use an auto-incrementing integer ID.

For sync systems, that can cause problems.

Why?

Because multiple devices may create records before speaking to the server.

For example:

Phone creates task 1
Tablet creates task 1

Both devices may accidentally create the same local ID.

To avoid this, sync systems commonly use unique text IDs, such as UUIDs.

Example:

task_7f2a9c88
task_b91d12ab

This allows each device to create records safely, even while offline.

updated_at

The updated_at column stores the last time the record changed.

This matters because sync engines often compare timestamps to decide:

• What changed recently

• Which version is newer

• What should be uploaded

• What should be downloaded

A timestamp is not a complete conflict resolution system by itself, but it is a useful starting point.

sync_status

The sync_status column tells the sync engine whether the row needs to be synchronized.

Common values include:

pending_insert
pending_update
pending_delete
synced

This allows the app to quickly find records that still need to be sent to the server.

Tracking Local Changes

The sync engine must know when something changes locally.

Suppose a user edits a task title.

The app updates the row:

UPDATE tasks
SET title = 'Buy groceries and milk',
    updated_at = 1735000000,
    sync_status = 'pending_update'
WHERE id = 'task_7f2a9c88';

Now the row clearly tells us:

• The task changed

• The change happened at a specific time

• The change has not yet been sent to the server

When the sync engine runs, it can find this row using:

SELECT *
FROM tasks
WHERE sync_status != 'synced';

This is much better than scanning every record and guessing what changed.

Handling New Records

When a user creates a new task offline, the app inserts the row with a pending status.

INSERT INTO tasks (
    id,
    title,
    completed,
    updated_at,
    sync_status
)
VALUES (
    'task_9ab421',
    'Book dentist appointment',
    0,
    1735000300,
    'pending_insert'
);

The task is immediately available in the app because it is stored locally in SQLite.

The user does not need to wait for the server.

Later, when internet access returns, the sync engine uploads this task.

If the server accepts it, the app updates the status:

UPDATE tasks
SET sync_status = 'synced'
WHERE id = 'task_9ab421';

Handling Updates

Updates follow the same pattern.

When a user changes an existing task:

UPDATE tasks
SET completed = 1,
    updated_at = 1735000600,
    sync_status = 'pending_update'
WHERE id = 'task_9ab421';

The sync engine later sends the change to the server.

Once confirmed, the local record becomes synced again.

UPDATE tasks
SET sync_status = 'synced'
WHERE id = 'task_9ab421';

This pattern keeps the local database honest. The app always knows which records are clean and which records still need server confirmation.

Handling Deletes with Soft Deletion

Deleting data in a sync engine requires care.

If we simply remove a row from SQLite, the sync engine may forget that the row ever existed.

That means the server may never learn that the record was deleted.

A better approach is soft deletion.

Add a column:

ALTER TABLE tasks
ADD COLUMN is_deleted INTEGER DEFAULT 0;

Instead of deleting the row immediately, mark it as deleted:

UPDATE tasks
SET is_deleted = 1,
    updated_at = 1735000900,
    sync_status = 'pending_delete'
WHERE id = 'task_9ab421';

Now the sync engine can upload the delete operation to the server.

After the server confirms the deletion, the app can either:

• Keep the deleted row for history

• Remove it during cleanup

• Archive it elsewhere

Soft deletion is very useful in mobile sync systems because it prevents lost delete events.

Creating a Sync Queue

For small apps, the sync_status column may be enough.

For larger apps, a separate sync queue is often better.

CREATE TABLE sync_queue (
    id INTEGER PRIMARY KEY AUTOINCREMENT,
    entity_type TEXT NOT NULL,
    entity_id TEXT NOT NULL,
    operation TEXT NOT NULL,
    created_at INTEGER NOT NULL,
    retry_count INTEGER DEFAULT 0
);

A queue gives the sync engine a clear list of work to process.

Example queue items:

tasks | task_1001 | insert
tasks | task_1002 | update
tasks | task_1003 | delete

This is useful because the sync engine can process changes in order.

A queue also makes retries easier. If an upload fails, the app can keep the queue item and try again later.

Uploading Changes to the Server

When the sync engine starts, it checks the queue or pending rows.

A simple upload flow looks like this:

Find pending changes
       ↓
Create API request
       ↓
Send data to server
       ↓
Server validates change
       ↓
Server confirms success
       ↓
Mark local row as synced

For example, the app may send a request like this:

{
  "id": "task_9ab421",
  "title": "Book dentist appointment",
  "completed": 0,
  "updated_at": 1735000300,
  "operation": "insert"
}

The server processes the change and returns success.

Then SQLite updates the local status.

This confirmation step matters. The app should not mark a record as synced before the server accepts it.

Downloading Changes from the Server

Sync is not only about uploading local changes.

The device must also download changes made elsewhere.

Example:

• A user edits a task on their tablet

• The server receives the update

• The phone later downloads that update

To support this, the app needs to ask the server:

Give me all changes since my last sync.

The app can store the last successful sync time in a small metadata table.

CREATE TABLE sync_metadata (
    key TEXT PRIMARY KEY,
    value TEXT NOT NULL
);

Example value:

last_sync_time = 1735000000

When syncing, the app sends this value to the server.

The server responds with records changed after that time.

The app then applies those updates to SQLite.

Basic Conflict Resolution

Conflicts happen when the same record changes in two places before synchronization.

Example:

Phone changes task title to:

Buy milk

Tablet changes the same task title to:

Buy bread

Both devices were offline.

When both sync later, the system must decide which version wins.

Last Write Wins

The simplest method is last write wins.

This means the version with the newest updated_at timestamp becomes the final version.

This is easy to build and works well for simple apps.

However, it has a weakness.

One user’s change may be overwritten.

Server Wins

Another simple approach is server wins.

If there is a conflict, the server version stays.

This is predictable, but it can frustrate users if their local edits disappear.

Manual Resolution

For important data, manual resolution may be better.

The app can show both versions and ask the user what to keep.

This works well for:

• Notes

• Documents

• Customer records

• Medical or financial information

For this first version of the sync engine, last write wins is usually acceptable. In more advanced systems, conflict handling becomes a major design topic.

Handling Network Failures

Mobile networks are unreliable.

A sync engine must expect failure.

Problems may include:

• No internet connection

• Timeout errors

• Server errors

• Partial uploads

• Authentication failures

SQLite helps because local data remains safe even if synchronization fails.

A failed sync should not destroy local work.

A basic retry strategy may look like this:

Sync failed
   ↓
Keep item in queue
   ↓
Increase retry count
   ↓
Try again later

The retry_count column in the sync queue helps track repeated failures.

Apps can also use backoff logic.

That means waiting longer between retries after repeated failures.

Example:

First retry: 10 seconds
Second retry: 30 seconds
Third retry: 2 minutes
Fourth retry: 10 minutes

This prevents the app from constantly hitting the server during outages.

Keeping the User Informed

A sync engine should not be invisible when something important happens.

Users should know whether their data is:

• Saved locally

• Waiting to sync

• Fully synced

• Failing to sync

A simple status message can improve trust.

Examples:

Saved on this device
Syncing...
All changes synced
Waiting for internet connection
Sync failed, will retry

This is especially important for business apps where users rely on data being saved correctly.

Security Considerations

A sync engine moves data between a device and a server, so security matters.

At minimum, a production app should use:

• HTTPS for all network communication

• Authentication tokens

• Server-side permission checks

• Careful handling of sensitive local data

If the app stores private or sensitive information locally, developers should also consider encryption.

SQLite itself stores data in a local file. Depending on the app, device-level security may not be enough.

Security should be designed early, not added later as an afterthought.

Putting the Sync Flow Together

Here is the full basic flow:

User changes data
       ↓
SQLite stores the change
       ↓
Record marked as pending
       ↓
Sync engine detects pending change
       ↓
Change uploaded to server
       ↓
Server confirms success
       ↓
Local record marked as synced
       ↓
Device downloads remote changes
       ↓
SQLite applies updates locally

This is the foundation of a mobile sync engine.

It is not yet a complete production system, but it gives us the core building blocks:

• Local storage

• Change tracking

• Uploads

• Downloads

• Sync status

• Retry handling

• Basic conflict resolution

Why SQLite Works Well for Mobile Sync

SQLite is a strong fit for mobile sync engines because it is:

• Local

• Fast

• Reliable

• Lightweight

• Easy to deploy

• Available on mobile platforms

The app does not need a separate database server on the device.

It simply uses a local database file.

This makes SQLite ideal for offline-first applications where the local device must remain useful even without network access.

Conclusion

A mobile sync engine allows applications to work reliably across changing network conditions.

SQLite provides the local foundation.

The sync engine provides the coordination.

Together, they allow users to:

• Work offline

• Save changes locally

• Sync later

• Use multiple devices

• Keep data consistent over time

The most important idea is this:

The mobile app should not stop working just because the network disappears.

By storing data locally in SQLite and carefully tracking changes, we can build applications that feel fast, reliable, and resilient.

This first version of the sync engine gives us a practical foundation. It handles local records, pending changes, uploads, downloads, retries, and basic conflict handling.

From here, we can make the system more efficient and production-ready.

Coming Ahead: Part 2

In Part 2, we will extend this mobile sync engine by implementing incremental synchronization.

Instead of downloading entire datasets repeatedly, the app will request only the records that changed since the last successful sync.

We will explore:

• Last sync timestamps

• Server-side change logs

• Delta updates

• Deleted record tracking

• Efficient pull synchronization

• Reducing bandwidth usage

• Improving sync speed for large datasets

This will move our sync engine from a simple working model to a more scalable design suitable for real mobile applications.

Subscribe Now

Want to go beyond basic SQLite and build real-world systems that scale, sync, and perform reliably?

Subscribe to SQLite Forum and get practical, example-driven guides delivered straight to your inbox. Learn how to design smarter databases, handle distributed systems, and implement advanced patterns like replication, event sourcing, and offline-first architecture.

Join a growing community of developers using SQLite in ways most people never imagine.
